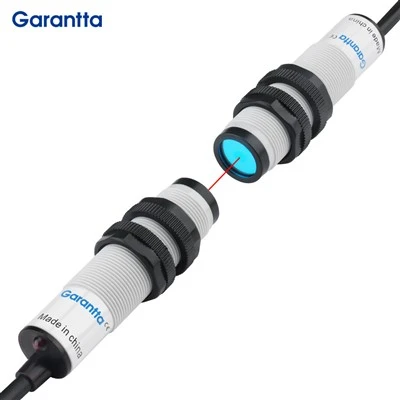

Lub M18 Retro Reflective Laser Sensor, raws li nws lub npe qhia, yog lub sensor uas siv cov nyhuv photoelectric rau tsis yog -kev tiv tauj. Nws feem ntau muaj xws li lub transmitter, receiver, thiab ib tug detection circuit. Lub transmitter emits ib lub teeb ntawm lub teeb (feem ntau infrared los yog pom lub teeb). Thaum lub nqaj raug thaiv los ntawm ib lub hom phiaj, lub teeb ci tau txais los ntawm lub receiver txo qis los yog ploj mus, ua rau cov khoom siv hluav taws xob kom pom cov teeb liab hluav taws xob, yog li kuaj pom lub hom phiaj.
- Reflection Hom:Txhawb diffuse, retro-reflective, los yog los ntawm -beam detection. Cov neeg siv tuaj yeem xaiv hom tsim nyog raws li daim ntawv thov scenario. Piv txwv li, diffuse reflection hom yog haum rau kev kuaj xyuas cov khoom nrog qhov chaw tsis sib xws, thaum dhau los ntawm - beam hom yog qhov zoo tagnrho rau kev ncua ntev - deb, nrhiav kom raug.
- Lub teeb Source thiab Detection Distance:Siv ib qho infrared LED (660mm; 850nm; 940nm) ua lub teeb ci, nws muaj kev tshawb pom ntau ntawm 0.15m txog 10m. Lub diffuse reflection hom muaj ntau qhov kev tshawb pom ntawm 0-15cm lossis 0-70cm, thaum hom hla-beam ncav cuag li 10m, ua tau raws li ntau hom kev thov.
- Tso zis hom:Txhawb NPN / PNP ib txwm qhib / ib txwm kaw cov zis tawm
- Environmental Compatibility:Kev khiav hauj lwm kub ntawm -15℃mus rau 55℃(xaiv cov qauv txuas mus rau -25℃mus rau 70 degree), ambient humidity 35% mus rau 95%, IP65 / IP67 tiv thaiv, thiab tiv thaiv surges, overloads, luv circuits, thiab rov qab polarity.
nta ntawm retro reflective laser sensor
1. Dedicated IC tsim nrog ua - hauv amplifier
2. Ncua sijhawm pib ua haujlwm tiv thaiv qhov tsis tseeb tshwm sim thaum lub zog-nce
3. Ua tau -hauv cov lim dej kom ntseeg tau tias kev ua haujlwm ruaj khov hauv ib puag ncig hnyav
4. Dual qhov taw qhia teeb rau tus kheej - kev kuaj mob muaj nuj nqi nrog adjustable rhiab heev
5. Txoj cai -lub kaum sab xis thermoplastic polyester vaj tse nrog 18mm threaded lens rau kev yooj yim installation
6. Kev tiv thaiv hluav taws xob thim rov qab, kev tiv thaiv rov qab tso tawm, kev tiv thaiv kev tiv thaiv ntau dhau, thiab kev hloov pauv kev ua haujlwm
FAQ
Q: Lub hom phiaj ntawm retro reflective laser sensor yog dab tsi?
A: Retro reflective sensor feem ntau yog siv los kuaj xyuas thiab saib xyuas qhov muaj, txoj haujlwm, thiab cov xwm txheej ntawm lub hom phiaj ntawm cov khoom. Nws tuaj yeem ua tiav qhov tsis yog - kev tshawb pom nyob rau hauv ib qho chaw, nrog rau cov yam ntxwv ntawm nrawm, raug, thiab txhim khu kev qha. Cov hauv qab no yog cov chaw siv rau kev cuam tshuam laser sensors:
- Tsis siv neeg qhov rooj thiab kev ruaj ntseg systems:retro- cov khoom siv hluav taws xob yog siv los saib xyuas kev nkag thiab tawm ntawm cov neeg ua haujlwm hauv thaj chaw xws li cov qhov rooj thiab txoj hauv kev, txhawm rau qhib lossis kaw qhov rooj, muab kev tiv thaiv kev nyab xeeb thiab yooj yim.
- Hlau tswj thiab txwv kev kuaj pom:retro reflective laser sensor tuaj yeem siv los txheeb xyuas txoj haujlwm, kev taw qhia, thiab kev mus ncig ceev ntawm cov khoom, thiab feem ntau yog siv rau kev txwv tsis pub, kev txiav txim ntawm txoj haujlwm, thiab kev taug qab cov cuab yeej siv tshuab.
- Conveyor kab thiab sib dhos kab tswj:retro-pab sensor tuaj yeem siv los txheeb xyuas qhov tuaj txog, tawm mus, thiab qhov chaw nyob ntawm cov khoom, ua tiav cov khoom thauj thiab kev tswj hwm ntawm cov kab ntau lawm.
- Cov khoom suav thiab sorting:retro-paj lasers sensors yuav siv tau los xyuas thiab suav cov khoom hla los ntawm conveyor siv, thiab txheeb thiab faib lawv raws li preset tej yam kev mob.
- Kev lag luam luam ntawv thiab ntim khoom:laser retro-cov khoom siv hluav taws xob tuaj yeem siv los txheeb xyuas txoj haujlwm, qhov tsis xws luag, thiab qhov chaw ntawm daim ntawv lossis cov khoom siv thaum thauj, txhim kho kev luam ntawv thiab ntim khoom zoo.
Kev siv dav dav ntawm kev cuam tshuam photoelectric sensors tau ua rau lawv yog qhov tseem ceeb thiab tseem ceeb hauv kev lag luam automation thiab cov cuab yeej siv tshuab.
