Kev piav qhia
Technical Parameters

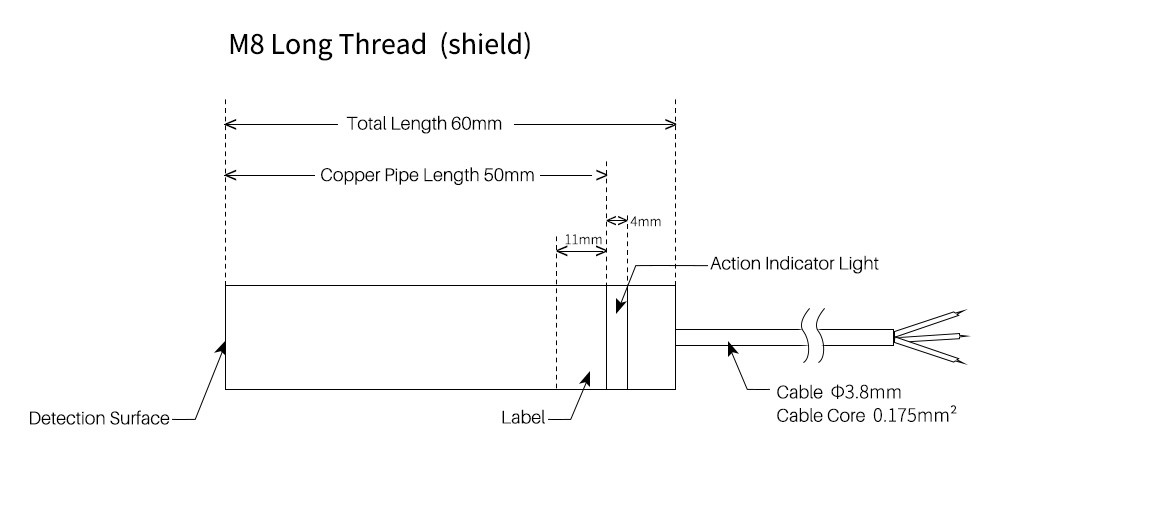

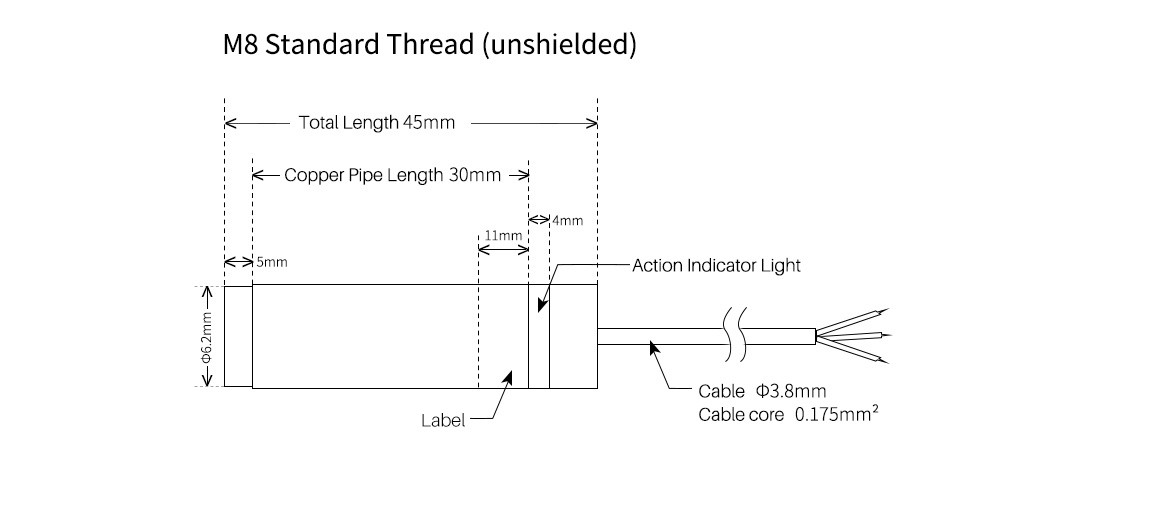

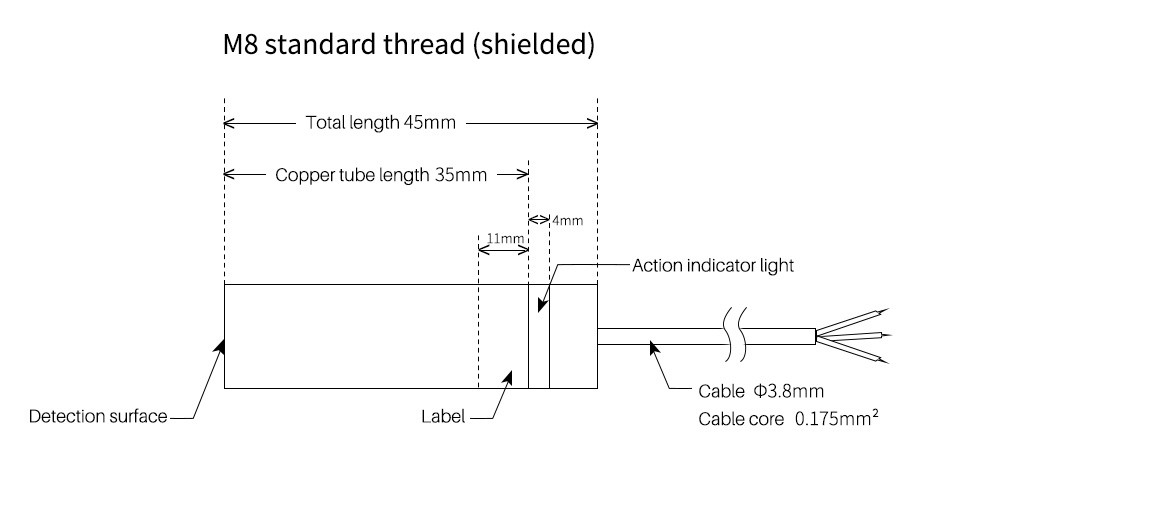

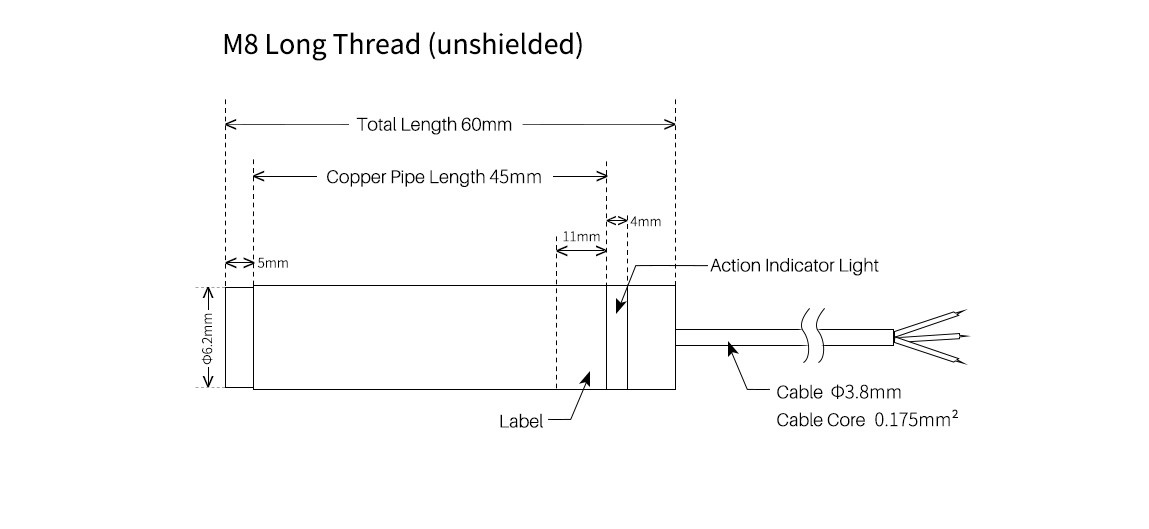

Qhov Loj & Hlau

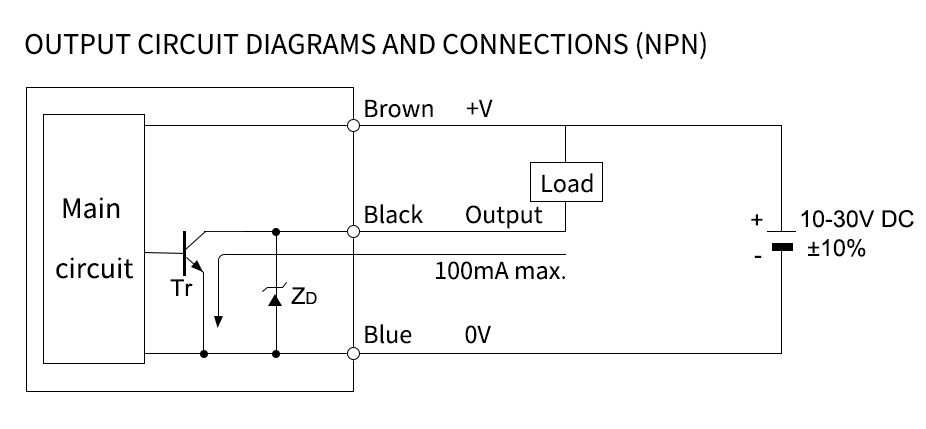

Raws li rau NPN Proximity Sensor, thaum tsis muaj khoom raug kuaj pom, qhov tso zis ntawm NPN sensor yog qhov impedance qis, tso tawm qhov qis - theem teeb liab. Thaum kuaj pom ib yam khoom, cov zis yuav ua rau siab impedance. Hom sensor no feem ntau siv rau hauv cov ntawv thov sib xws nrog cov khoom siv hluav taws xob tsis zoo lossis cov tshuab hauv av.

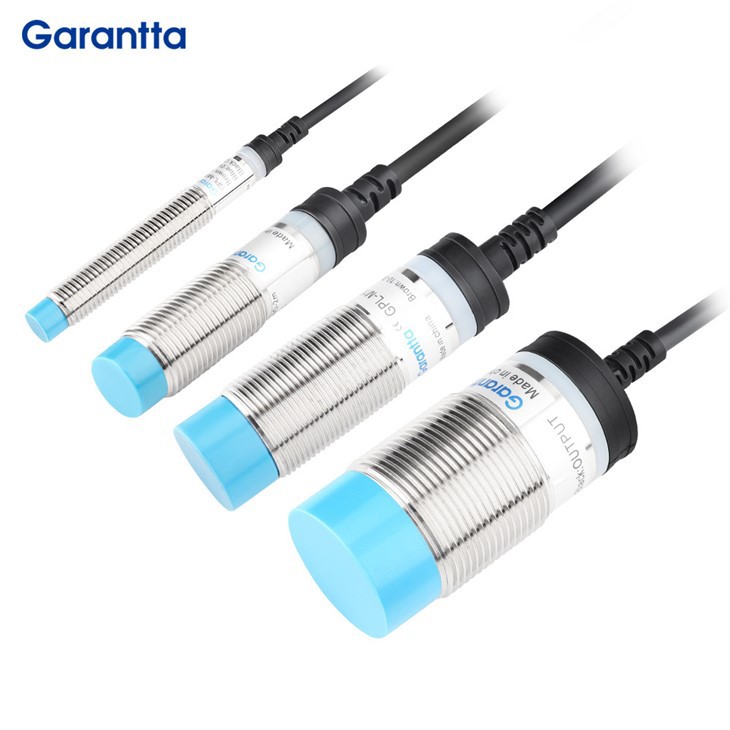

Nta ntawm NPN Sib Nqus Sensor
- Output Signal: Outputs low -level signal thaum kuaj pom ib yam khoom.
- Kev Txuas Hluav Taws Xob: Feem ntau txuas nrog lub zog tsis zoo lossis hauv av.
- Daim ntaub ntawv: Haum rau kev tswj cov tshuab uas xav tau qhov tsis zoo voltage lossis hauv av teeb liab.
- Kev xaim hluav taws xob: Kev sib txuas rau lub hwj chim tsis zoo lossis hauv av yuav tsum xav txog.
Daim ntawv thov ntawm NPN Proximity Sensor
- Automated Production Lines:Siv los txheeb xyuas qhov chaw ua haujlwm, suav, thiab muab tso rau ntawm cov kab ntau lawm. Piv txwv li, nyob rau hauv automotive manufacturing kab, nws muaj peev xwm saib xyuas cov conveying thiab sib dhos txoj hauj lwm ntawm nws pib qhov chaw, xyuas kom meej qhov tseeb thiab efficiency ntawm cov txheej txheem ntau lawm.
- Mechanical Manufacturing:Nws tuaj yeem saib xyuas txoj haujlwm ntawm kev txav ntawm cov khoom siv tshuab, xws li lub rooj ua haujlwm thiab cov cuab yeej ua haujlwm ntawm cov cuab yeej siv tshuab, ua kom lub sijhawm tiag tiag ntawm cov khoom siv ua haujlwm, tiv thaiv kev sib tsoo thiab kev ua haujlwm tsis zoo, thiab txhim kho cov cuab yeej kev nyab xeeb thiab kev ntseeg tau.
- Khoom siv:Hauv warehousing thiab logistics, nws tuaj yeem saib xyuas cov khoom nkag thiab tawm, nrog rau cov haujlwm sib tw, ua kom cov khoom siv tsis siv neeg tuav thiab tswj kev cia, txhim kho kev ua haujlwm zoo.
- Kev ua hlau:Nyob rau hauv cov txheej txheem hlau xws li stamping, forging, thiab txiav, nws tuaj yeem saib xyuas cov khoom noj thiab qhov chaw ntawm cov ntaub ntawv hlau kom ntseeg tau tias kev ua haujlwm raug thiab zoo.
FAQ
Q: Yuav ua li cas hais txog lub ntsiab lus ntawm PNP thiab NPN Proximity Sensors?

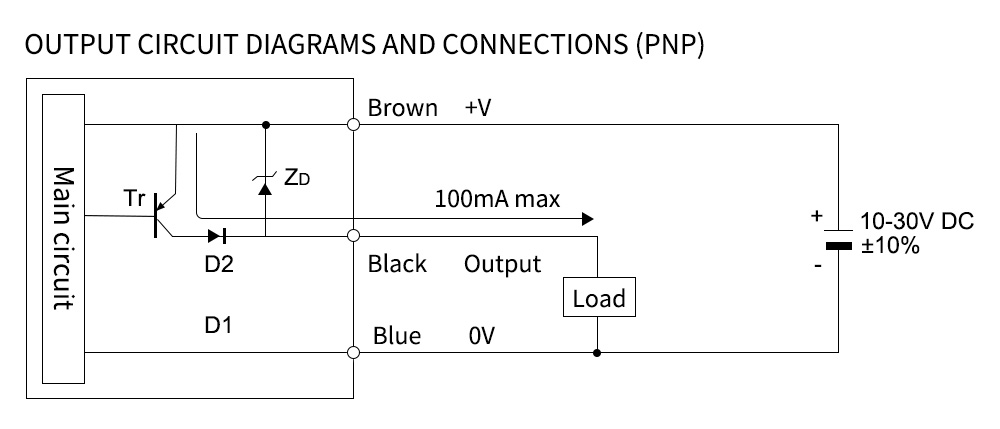

1. Tso zis polarity: PNP sensors tso tawm ib theem siab (zoo voltage) thaum kuaj pom ib yam khoom, thaum NPN sensors tso zis theem qis (hauv av).
2 .Kev sib txuas hauv Circuit Court: PNP sensors feem ntau txuas nrog lub zog zoo, thaum NPN sensors txuas nrog lub zog tsis zoo lossis hauv av.
3 .Cov ntawv thov: PNP sensors tsim nyog rau cov tshuab uas xav tau lub teeb liab qhov zoo, thaum NPN sensors tsim nyog rau cov tshuab uas xav tau qhov tsis zoo lossis cov teeb liab hauv av.
4 .Compatibility: Thaum xaiv ib lub sensor, xav txog nws compatibility nrog tswj system, raws li cov kev tswj sib txawv yuav xav tau ntau hom teeb liab.
Kev txhim kho thiab Kev Ruaj Ntseg: PNP thiab NPN sensors xav tau cov txheej txheem sib txawv, uas tuaj yeem cuam tshuam rau kev sib txuas ntawm txoj hlua thiab tus nqi ntawm lub cev.
Q: Kuv puas tuaj yeem tau txais tus nqi qis dua yog tias kuv xaj ntau ntau?
A: Yog, kev txiav txim loj dua yog pheej yig dua. Thov hu rau peb thiab peb yuav muab cov lus qhia rau koj.
Q: Yog tias kuv xav tau ib qho qauv rau kev sim ua ntej -, koj puas muag cov qauv rau qhov kev nug no?
Yog lawm, peb tuaj yeem muag cov qauv rau kev kuaj ua ntej -. Thov hu rau peb yog tias koj xav tau ib qho.
Q: Thaum twg koj yuav xa kuv daim ntawv xaj?
A: 48-teev shipping lav rau hauv- cov khoom hauv Tshuag thiab 10-15 hnub rau cov khoom tsis muaj Tshuag.
Cim npe nrov: Tuam Tshoj npn sib nqus sensor manufacturers, lwm tus neeg, Hoobkas
Txheem unshielded cylindrical hom inductive sensor specification
| Qauv | Kev ntsuas deb | Teeb qhov deb | Teb txawv nyob deb |
NP/NP | Hom kev ua | Standard xeem tshuaj | Qhov hluav taws xob | Kev siv tam sim no | Load tam sim no | Residual voltage | Hloov zaus |
Kev tiv thaiv Circuit Court | Ambient kub | Kev tiv thaiv qib |
| GPL-M08KU02-NO-2m | 2 hli | 0-1.6 hli | Tsis pub dhau 10% nrhiav kom pom deb | NPN | Nquag qhib | Hlau (ST37) | Hauv qab no 10-30VDC | Hauv qab no 8mA | Tsawg dua 100mA | Hauv qab no 1V | 800 Hz | Tso zis polarity rov qab tiv thaiv, fais fab mov rov qab polarity tiv thaiv, surge absorption, luv Circuit Court tiv thaiv | -25-70 degree | IP67 |
| GPL-M08KU02-NC-2m | NPN | Nquag kaw | ||||||||||||
| GPL-M08KU02-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M08KU02-PC-2m | PNP | Nquag kaw | ||||||||||||
| GPL-M08LU02-NO-2m | NPN | Nquag qhib | ||||||||||||
| GPL-M08LU02-NC-2m | NPN | Nquag kaw | ||||||||||||
| GPL-M08LU02-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M08LU02-PC-2m | PNP | Nquag kaw |
Standard shielded cylindrical inductive sib thooj sensor specification
| Qauv | Kev ntsuas deb | Teeb qhov deb | Teb txawv nyob deb |
NP/NP | Hom kev ua | Standard xeem tshuaj | Qhov hluav taws xob | Kev siv tam sim no | Load tam sim no | Residual voltage | Hloov zaus |
Kev tiv thaiv Circuit Court | Ambient kub | Kev tiv thaiv qib |
| GPL-M08KS01-NO-2m | 1.5 hli | 0-1.2 hli | Tsis pub dhau 10% nrhiav kom pom deb | NPN | Nquag qhib | Hlau (ST37) | Hauv qab no 10-30VDC | Hauv qab no 8mA | Tsawg dua 100mA | Hauv qab no 1V | 800 Hz | Tso zis polarity rov qab tiv thaiv, fais fab mov rov qab polarity tiv thaiv, surge absorption, luv Circuit Court tiv thaiv | -25-70 degree | IP67 |
| GPL-M08KS01-NC-2m | Nquag kaw | |||||||||||||
| GPL-M08KS01-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M08KS01-PC-2m | Nquag kaw | |||||||||||||
| GPL-M08LS01-NO-2m | NPN | Nquag qhib | ||||||||||||
| GPL-M08LS01-NC-2m | Nquag kaw | |||||||||||||
| GPL-M08LS01-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M08LS01-PC-2m | Nquag kaw |
Ob chav nrug unshielded ncig inductor sib thooj sensor specification
| Qauv | Kev ntsuas deb | Teeb qhov deb | Teb txawv nyob deb |
NP/NP | Hom kev ua | Standard xeem tshuaj | Qhov hluav taws xob | Kev siv tam sim no | Load tam sim no | Residual voltage | Hloov zaus |
Kev tiv thaiv Circuit Court | Ambient kub | Kev tiv thaiv qib |
| GPL-M08KU04-NO-2m | 4mm ib | 0-3.2 hli | Tsis pub dhau 10% nrhiav kom pom deb | NPN | Nquag qhib | Hlau (ST37) | Hauv qab no 10-30VDC | Hauv qab no 8mA | Tsawg dua 100mA | Hauv qab no 1V | 1000 Hz | Tso zis polarity rov qab tiv thaiv, fais fab mov rov qab polarity tiv thaiv, surge absorption, luv Circuit Court tiv thaiv | -25-70 degree | IP67 |
| GPL-M08KU04-NC-2m | NPN | Nquag kaw | ||||||||||||
| GPL-M08KU04-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M08KU04-PC-2m | PNP | Nquag kaw | ||||||||||||
| GPL-M08LU04-NO-2m | NPN | Nquag qhib | ||||||||||||
| GPL-M08LU04-NC-2m | NPN | Nquag kaw | ||||||||||||
| GPL-M08LU04-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M08LU04-PC-2m | PNP | Nquag kaw |
Ob chav nrug shielded ncig inductor sib thooj sensor specification
| Qauv | Kev ntsuas deb | Teeb qhov deb | Teb txawv nyob deb |
NP/NP | Hom kev ua | Standard xeem tshuaj | Qhov hluav taws xob | Kev siv tam sim no | Load tam sim no | Residual voltage | Hloov zaus |
Kev tiv thaiv Circuit Court | Ambient kub | Kev tiv thaiv qib |
| GPL-M08KS02-NO-2m | 2 hli | 0-1.6 hli | Tsis pub dhau 10% nrhiav kom pom deb | NPN | Nquag qhib | Hlau (ST37) | Hauv qab no 10-30VDC | Hauv qab no 8mA | Tsawg dua 100mA | Hauv qab no 1V | 1500 Hz | Tso zis polarity rov qab tiv thaiv, fais fab mov rov qab polarity tiv thaiv, surge absorption, luv Circuit Court tiv thaiv | -25-70 degree | IP67 |
| GPL-M08KS02-NC-2m | Nquag kaw | |||||||||||||
| GPL-M08KS02-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M08KS02-PC-2m | Nquag kaw | |||||||||||||
| GPL-M08LS02-NO-2m | NPN | Nquag qhib | ||||||||||||
| GPL-M08LS02-NC-2m | Nquag kaw | |||||||||||||
| GPL-M08LS02-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M08LS02-PC-2m | Nquag kaw |
Txheem unshielded cylindrical hom inductive sensor specification
| Qauv | Kev ntsuas deb | Teeb qhov deb | Teb txawv nyob deb |
NP/NP | Hom kev ua | Standard xeem tshuaj | Qhov hluav taws xob | Kev siv tam sim no | Load tam sim no | Residual voltage | Hloov zaus |
Kev tiv thaiv Circuit Court | Ambient kub | Kev tiv thaiv qib |
| GPL-M12KU04-NO-2m | 4mm ib | 0-3.2 hli | Tsis pub dhau 10% nrhiav kom pom deb | NPN | Nquag qhib | Hlau (ST37) | Hauv qab no 10-30VDC | Hauv qab no 8mA | Tsawg dua 100mA | Hauv qab no 1V | 600 Hz | -25-70 degree | IP67 | |
| GPL-M12KU04-NC-2m | NPN | Nquag kaw | ||||||||||||
| GPL-M12KU04-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M12KU04-PC-2m | PNP | Nquag kaw | ||||||||||||
| GPL-M12LU04-NO-2m | NPN | Nquag qhib | ||||||||||||
| GPL-M12LU04-NC-2m | NPN | Nquag kaw | ||||||||||||
| GPL-M12LU04-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M12LU04-PC-2m | PNP | Nquag kaw |
Standard shielded cylindrical inductive sib thooj sensor specification
| Qauv | Kev ntsuas deb | Teeb qhov deb | Teb txawv nyob deb |
NP/NP | Hom kev ua | Standard xeem tshuaj | Qhov hluav taws xob | Kev siv tam sim no | Load tam sim no | Residual voltage | Hloov zaus |
Kev tiv thaiv Circuit Court | Ambient kub | Kev tiv thaiv qib |
| GPL-M12KS02-NO-2m | 2 hli | 0-1.6 hli | Tsis pub dhau 10% nrhiav kom pom deb | NPN | Nquag qhib | Hlau (ST37) | Hauv qab no 10-30VDC | Hauv qab no 8mA | Tsawg dua 100mA | Hauv qab no 1V | 600 Hz | -25-70 degree | IP67 | |
| GPL-M12KS02-NC-2m | Nquag kaw | |||||||||||||
| GPL-M12KS02-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M12KS02-PC-2m | Nquag kaw | |||||||||||||
| GPL-M12LS02-NO-2m | NPN | Nquag qhib | ||||||||||||
| GPL-M12LS02-NC-2m | Nquag kaw | |||||||||||||
| GPL-M12LS02-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M12LS02-PC-2m | Nquag kaw |
Ob chav nrug unshielded ncig inductor sib thooj sensor specification
| Qauv | Kev ntsuas deb | Teeb qhov deb | Teb txawv nyob deb |
NP/NP | Hom kev ua | Standard xeem tshuaj | Qhov hluav taws xob | Kev siv tam sim no | Load tam sim no | Residual voltage | Hloov zaus |
Kev tiv thaiv Circuit Court | Ambient kub | Kev tiv thaiv qib |
| GPL-M12KU08-NO-2m | 8mm ib | 0-6.4 hli | Tsis pub dhau 10% nrhiav kom pom deb | NPN | Nquag qhib | Hlau (ST37) | Hauv qab no 10-30VDC | Hauv qab no 8mA | 100mA 100 mA | Hauv qab no 1V | 800 Hz | -25-70 degree | IP67 | |
| GPL-M12KU08-NC-2m | NPN | Nquag kaw | ||||||||||||
| GPL-M12KU08-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M12KU08-PC-2m | PNP | Nquag kaw | ||||||||||||
| GPL-M12LU08-NO-2m | NPN | Nquag qhib | ||||||||||||
| GPL-M12LU08-NC-2m | NPN | Nquag kaw | ||||||||||||
| GPL-M12LU08-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M12LU08-PC-2m | PNP | Nquag kaw |
Ob chav nrug shielded ncig inductor sib thooj sensor specification
| Qauv | Kev ntsuas deb | Teeb qhov deb | Teb txawv nyob deb |
NP/NP | Hom kev ua | Standard xeem tshuaj | Qhov hluav taws xob | Kev siv tam sim no | Load tam sim no | Residual voltage | Hloov zaus |
Kev tiv thaiv Circuit Court | Ambient kub | Kev tiv thaiv qib |
| GPL-M12KS04-NO-2m | 4mm ib | 0-3.2 hli | Tsis pub dhau 10% nrhiav kom pom deb | NPN | Nquag qhib | Hlau (ST37) | Hauv qab no 10-30VDC | Hauv qab no 8mA | 100mA 100 mA | Hauv qab no 1V | 1000 Hz | -25-70 degree | IP67 | |
| GPL-M12KS04-NC-2m | Nquag kaw | |||||||||||||
| GPL-M12KS04-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M12KS04-PC-2m | Nquag kaw | |||||||||||||
| GPL-M12LS04-NO-2m | NPN | Nquag qhib | ||||||||||||
| GPL-M12LS04-NC-2m | Nquag kaw | |||||||||||||
| GPL-M12LS04-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M12LS04-PC-2m | Nquag kaw |
Txheem unshielded cylindrical hom inductive sensor specification
| Qauv | Kev ntsuas deb | Teeb qhov deb | Teb txawv nyob deb |
NP/NP | Hom kev ua | Standard xeem tshuaj | Qhov hluav taws xob | Kev siv tam sim no | Load tam sim no | Residual voltage | Hloov zaus |
Kev tiv thaiv Circuit Court | Ambient kub | Kev tiv thaiv qib |
| GPL-M18KU10-NO-2m | 10 hli | 0-8 hli | Tsis pub dhau 10% nrhiav kom pom deb | NPN | Nquag qhib | Hlau (ST37) | Hauv qab no 10-30VDC | Hauv qab no 8mA | Tsawg dua 100mA | Hauv qab no 1V | 400 Hz | -25-70 degree | IP67 | |
| GPL-M18KU10-NC-2m | NPN | Nquag kaw | ||||||||||||
| GPL-M18KU10-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M18KU10-PC-2m | PNP | Nquag kaw | ||||||||||||
| GPL-M18LU10-NO-2m | NPN | Nquag qhib | ||||||||||||
| GPL-M18LU10-NC-2m | NPN | Nquag kaw | ||||||||||||
| GPL-M18LU10-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M18LU10-PC-2m | PNP | Nquag kaw |
Standard shielded cylindrical inductive sib thooj sensor specification
| Qauv | Kev ntsuas deb | Teeb qhov deb | Teb txawv nyob deb |
NP/NP | Hom kev ua | Standard xeem tshuaj | Qhov hluav taws xob | Kev siv tam sim no | Load tam sim no | Residual voltage | Hloov zaus |
Kev tiv thaiv Circuit Court | Ambient kub | Kev tiv thaiv qib |
| GPL-M18KS05-NO-2m | 5mm ib | 0-4 hli | Tsis pub dhau 10% nrhiav kom pom deb | NPN | Nquag qhib | Hlau (ST37) | Hauv qab no 10-30VDC | Hauv qab no 8mA | Tsawg dua 100mA | Hauv qab no 1V | 400 Hz | -25-70 degree | IP67 | |
| GPL-M18KS05-NC-2m | Nquag kaw | |||||||||||||
| GPL-M18KS05-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M18KS05-PC-2m | Nquag kaw | |||||||||||||
| GPL-M18LS05-NO-2m | NPN | Nquag qhib | ||||||||||||
| GPL-M18LS05-NC-2m | Nquag kaw | |||||||||||||
| GPL-M18LS05-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M18LS05-PC-2m | Nquag kaw |
Ob chav nrug unshielded ncig inductor sib thooj sensor specification
| Qauv | Kev ntsuas deb | Teeb qhov deb | Teb txawv nyob deb |
NP/NP | Hom kev ua | Standard xeem tshuaj | Qhov hluav taws xob | Kev siv tam sim no | Load tam sim no | Residual voltage | Hloov zaus |
Kev tiv thaiv Circuit Court | Ambient kub | Kev tiv thaiv qib |
| GPL-M18KU16-NO-2m | 16 hli | 0-12.8 hli | Tsis pub dhau 10% nrhiav kom pom deb | NPN | Nquag qhib | Hlau (ST37) | Hauv qab no 10-30VDC | Hauv qab no 8mA | 100mA los yog tsawg dua | Hauv qab no 1V | 400 Hz | -25-70 degree | IP67 | |
| GPL-M18KU16-NC-2m | NPN | Nquag kaw | ||||||||||||
| GPL-M18KU16-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M18KU16-PC-2m | PNP | Nquag kaw | ||||||||||||
| GPL-M18LU16-NO-2m | NPN | Nquag qhib | ||||||||||||
| GPL-M18LU16-NC-2m | NPN | Nquag kaw | ||||||||||||
| GPL-M18LU16-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M18LU16-PC-2m | PNP | Nquag kaw |
Ob chav nrug shielded ncig inductor sib thooj sensor specification
| Qauv | Kev ntsuas deb | Teeb qhov deb | Teb txawv nyob deb |
NP/NP | Hom kev ua | Standard xeem tshuaj | Qhov hluav taws xob | Kev siv tam sim no | Load tam sim no | Residual voltage | Hloov zaus |
Kev tiv thaiv Circuit Court | Ambient kub | Kev tiv thaiv qib |
| GPL-M18KS08-NO-2m | 8mm ib | 0-6.4 hli | Tsis pub dhau 10% nrhiav kom pom deb | NPN | Nquag qhib | Hlau (ST37) | Hauv qab no 10-30VDC | Hauv qab no 8mA | 100mA los yog tsawg dua | Hauv qab no 1V | 500 Hz | -25-70 degree | IP67 | |
| GPL-M18KS08-NC-2m | Nquag kaw | |||||||||||||
| GPL-M18KS08-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M18KS08-PC-2m | Nquag kaw | |||||||||||||
| GPL-M18LS08-NO-2m | NPN | Nquag qhib | ||||||||||||
| GPL-M18LS08-NC-2m | Nquag kaw | |||||||||||||
| GPL-M18LS08-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M18LS08-PC-2m | Nquag kaw |
Txheem unshielded cylindrical hom inductive sensor specification
| Qauv | Kev ntsuas deb | Teeb qhov deb | Teb txawv nyob deb |
NP/NP | Hom kev ua | Standard xeem tshuaj | Qhov hluav taws xob | Kev siv tam sim no | Load tam sim no | Residual voltage | Hloov zaus |
Kev tiv thaiv Circuit Court | Ambient kub | Kev tiv thaiv qib |
| GPL-M30KU20-NO-2m | 20 hli | 0-16 hli | Tsis pub dhau 10% nrhiav kom pom deb | NPN | Nquag qhib | Hlau (ST37) | Hauv qab no 10-30VDC | Hauv qab no 8mA | Tsawg dua 100mA | Hauv qab no 1V | 100 Hz | -25-70 degree | IP67 | |
| GPL-M30KU20-NC-2m | NPN | Nquag kaw | ||||||||||||
| GPL-M30KU20-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M30KU20-PC-2m | PNP | Nquag kaw | ||||||||||||
| GPL-M30LU20-NO-2m | NPN | Nquag qhib | ||||||||||||
| GPL-M30LU20-NC-2m | NPN | Nquag kaw | ||||||||||||
| GPL-M30LU20-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL -M30LU20-PC-2m | PNP | Nquag kaw |
Standard shielded cylindrical inductive sib thooj sensor specification
| Qauv | Kev ntsuas deb | Teeb qhov deb | Teb txawv nyob deb |
NP/NP | Hom kev ua | Standard xeem tshuaj | Qhov hluav taws xob | Kev siv tam sim no | Load tam sim no | Residual voltage | Hloov zaus |
Kev tiv thaiv Circuit Court | Ambient kub | Kev tiv thaiv qib |
| GPL-M30KS10-NO-2m | 10 hli | 0-8 hli | Tsis pub dhau 10% nrhiav kom pom deb | NPN | Nquag qhib | Hlau (ST37) | Hauv qab no 10-30VDC | Hauv qab no 8mA | Tsawg dua 100mA | Hauv qab no 1V | 100 Hz | -25-70 degree | IP67 | |
| GPL-M30KS10-NC-2m | Nquag kaw | |||||||||||||
| GPL-M30KS10-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M30KS10-PC-2m | Nquag kaw | |||||||||||||
| GPL-M30LS10-NO-2m | NPN | Nquag qhib | ||||||||||||
| GPL-M30LS10-NC-2m | Nquag kaw | |||||||||||||
| GPL-M30LS10-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M30LS10-PC-2m | Nquag kaw |
Ob chav nrug unshielded ncig inductor sib thooj sensor specification
| Qauv | Kev ntsuas deb | Teeb qhov deb | Teb txawv nyob deb |
NP/NP | Hom kev ua | Standard xeem tshuaj | Qhov hluav taws xob | Kev siv tam sim no | Load tam sim no | Residual voltage | Hloov zaus |
Kev tiv thaiv Circuit Court | Ambient kub | Kev tiv thaiv qib |
| GPL-M30KU30-NO-2m | 30 hli | 0-22.5 hli | Tsis pub dhau 10% nrhiav kom pom deb | NPN | Nquag qhib | Hlau (ST37) | Hauv qab no 10-30VDC | Hauv qab no 8mA | 100mA los yog tsawg dua | Hauv qab no 1V | 100 Hz | -25-70 degree | IP67 | |
| GPL-M30KU30-NC-2m | NPN | Nquag kaw | ||||||||||||
| GPL-M30KU30-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M30KU30-PC-2m | PNP | Nquag kaw | ||||||||||||
| GPL-M30LU30-NO-2m | NPN | Nquag qhib | ||||||||||||
| GPL-M30LU30-NC-2m | NPN | Nquag kaw | ||||||||||||
| GPL-M30LU30-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M30LU30-PC-2m | PNP | Nquag kaw |
Ob chav nrug shielded ncig inductor sib thooj sensor specification
| Qauv | Kev ntsuas deb | Teeb qhov deb | Teb txawv nyob deb |
NP/NP | Hom kev ua | Standard xeem tshuaj | Qhov hluav taws xob | Kev siv tam sim no | Load tam sim no | Residual voltage | Hloov zaus |
Kev tiv thaiv Circuit Court | Ambient kub | Kev tiv thaiv qib |
| GPL-M30KS15-NO-2m | 15 hli | 0-11.25 hli | Tsis pub dhau 10% nrhiav kom pom deb | NPN | Nquag qhib | Hlau (ST37) | Hauv qab no 10-30VDC | Hauv qab no 8mA | 100mA los yog tsawg dua | Hauv qab no 1V | 250 Hz | -25-70 degree | IP67 | |
| GPL-M30KS15-NC-2m | Nquag kaw | |||||||||||||
| GPL-M30KS15-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M30KS15-PC-2m | Nquag kaw | |||||||||||||
| GPL-M30LS15-NO-2m | NPN | Nquag qhib | ||||||||||||
| GPL-M30LS15-NC-2m | Nquag kaw | |||||||||||||
| GPL-M30LS15-PO-2m | PNP | Nquag qhib | ||||||||||||
| GPL-M30LS15-PC-2m | Nquag kaw |
